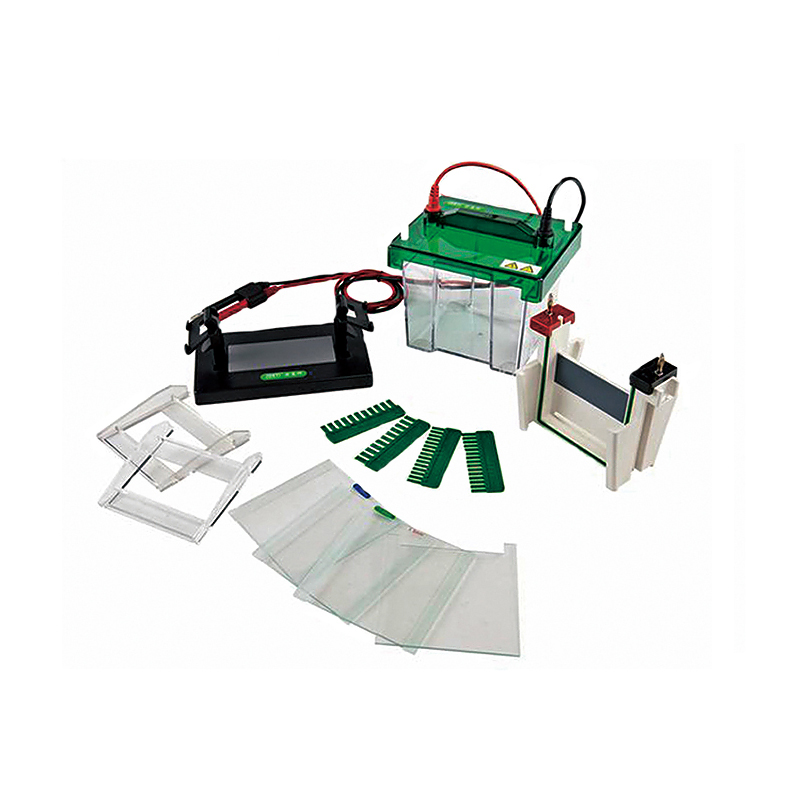

MF-ETV1 Vertical Electrophoresis Tank
Vertical electrophoresis is used for separation, purification and preparation of nucleic acid and protein samples in life science research.
Features:
1. Easy installation
2. With the gel making device of normal position, don’t should to moving the glass plate from the process of making gel to electrophoresis, convenient for observation the gel preparation from the glass on both sides, ensures fast set up times and leak-free operation
3. Sample background color design, adding the sample conveniently.
4. Abundant buffer not only guarantees cooling effects, but also keeps the PH value stable during the whole experiment process
5. Auto-switch off when the lid is removed
6. Recommended power supply: MF-PS2
Technical Parameters:
| Model | MF-ETV1 |
| Gel Tray (D*W) mm | 100*100 |
| Gel Trays(D*W) mm | 82*88 |
| Comb Thickness | 0.75, 1.0 &1.5mm |
| Comb Throughput | 11,15 |
| Amount of Gel: | 1~2 piece |
| NO. of Samples | 11~30 |
| Buffer Volume | 750ml |
| Standard Accessories | Body tank with electrode*1 Gel casting base *1Notched glass plates*4 0.75mm bonded glass spacer*21.0mm bonded glass spacer*2 1.5mm bonded glass spacer*20.75 mm thickness11 wells comb*2 1.0mm thickness11 wells comb*21.5mm thickness 11 wells comb*20.75mm thickness 15 wells comb*21.0mm thickness 15wells comb*21.5mm thickness 15wells comb*2Gel shovel*1 Clamp version *2 Dummy plate*1Electrical Cables*1 User Manual*1 |
| External Size (W*D*H) mm | 150*120*115 |
| Package Size(W*D*H) mm | 370*300*220 |
| Gross Weight | 2 Kg |
