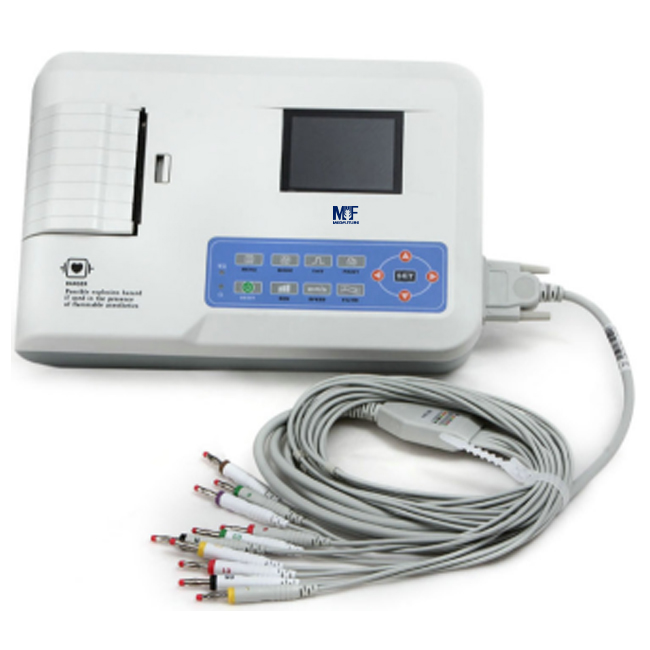

ECG300 Electrocardiogragh Digital 3-Channel ECG
Features:
1. Color TFT displays 3/6/12-lead ECG waveform and work state in a screen, convenient for contrastively diagnosing.
2. Synchronously collect up to 12-lead ECG signal, powerful digital filter provides signal or combined filter mode.
3. Auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc.
4. AC and DC are optional, in optimal DC state, built-in rechargeable lithium battery, convenient for visiting a patient at home an examination.
5. Optional Interface language and reports: Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazakhstan, Russian.
| Technical Parameters: | |
| Safety Classification | Class I, type CF and defibrillation-proof applied part |
| Lead | Standard 12-lead |
| Input Mode | Floating, debrifillation protection and pacemaker pulse rejection circuit |
| Patient Leak Current | <10uA |
| Sampling Frequency | 1000Hz |
| Frequency Response | 0.05Hz~150Hz (-3dB~+0.4dB) |
| Time Constant | ≥3.2s |
| CMRR | >60dB, >100dB |
| Polarization Voltage | ±500mV |
| Noise Level | ≤15uVp-p |
| EMG Interference Filter | 25Hz/35Hz (-3dB) |
| Recording Mode | Thermal printing system (8 dots/mm) |
| Sensitivity | 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, 40mm/mV, auto |
| Paper Speed | 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s |
| Specification for Recording Paper | 80mm(W)×20m(L), high-speed thermal paper |
| Standard Accessories | Lead cable*1, Limb electrode*1, Chest electrode*1, Thermal recording paper*1, Power cord*1, Earth wire*1, User manual*1 |
| Power Supply | AC: 100~240V, 50/60Hz DC: 7.4V, 3700mAh lithium battery |
| Package Size (W*D*H) | 410*300*200mm |
| Gross Weight | 4Kg |
