PP Fume Hood
Advantages：

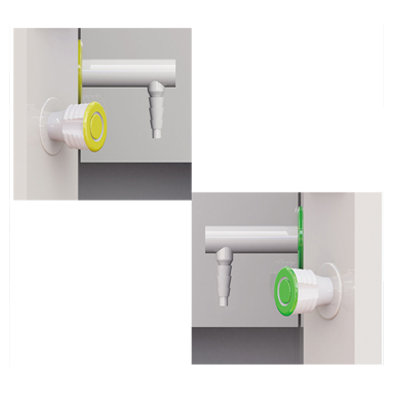

1.It is safer to use anti-corrosive water tap.

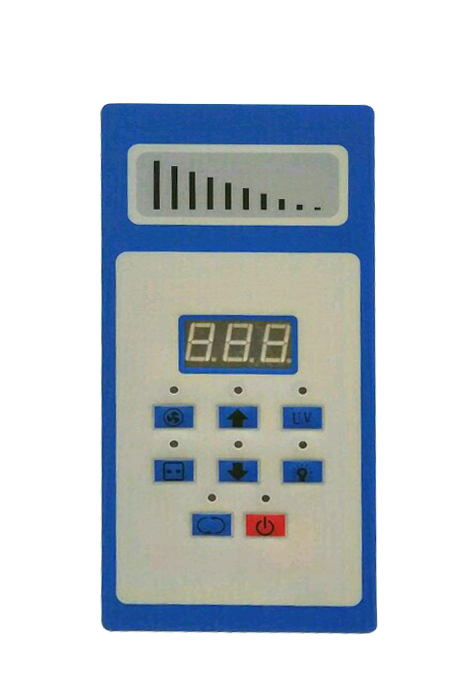

2.Microprocessor control system, LED display
3.With memory function in case of power-failure
4.Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion.
5.Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.
Technical Parameters：
| Model | MF-FH1000(P) | MF-FH1200(P) | MF-FH1500(P) | MF-FH1800(P) | |
| External Size (W*D*H) mm | 1040*750*2200 | 1240*800*2200 | 1540*800*2200 | 1840*800*2200 | |
| Internal Size (W*D*H) mm | 820*520*872 | 1020*570*872 | 1320*570*872 | 1620*570*872 | |
| Work Surface Height | 740mm | ||||
| Max Opening | 815mm | ||||
| Air Velocity | 0.4~0.6m/s | ||||
| Noise | ≤60dB | ||||
| Illuminating Lamp | LED lamp | Fluorescent Lamp | Fluorescent Lamp | Fluorescent Lamp | |
| 12W*1 | 30W*2 | 30W*2 | 30W*2 | ||
| Blower | Built-in PP centrifugal blower（2 blowers for FH1800(P) only） | ||||
| Front Window | Manual, 5mm toughened glass, height adjustable. | ||||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||
| Consumption | 330W | 360W | 360W | 360W | |
| Material | Main Body | Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion | |||
| Work Table | Chemical resistant phenolic resin | ||||
| Standard Accessory | Illuminating Lamp , Water tap, Gas tap, Water Sink, Base cabinet Waterproof socket*2 4 meters PVC duct (2 Pcs of 4 meters PVC dust for MF-FH1800P only), Diameter:250mm | ||||
| Optional Accessory | PP work table, epoxy resin board or ceramic board. Outer centrifugal blower, resistant to strong acid, alkali | ||||
| Gross Weight | 160kg | 198kg | 225kg | 259kg | |
| Package Size (W*D*H) mm | Main Body | 1120*840*1620 | 1320*880*1620 | 1620*880*1620 | 1920*880*1620 |
| Base Cabinet | 1120*790*1040 | 1320*880*1040 | 1610*880*1040 | 1920*880*1040 | |
