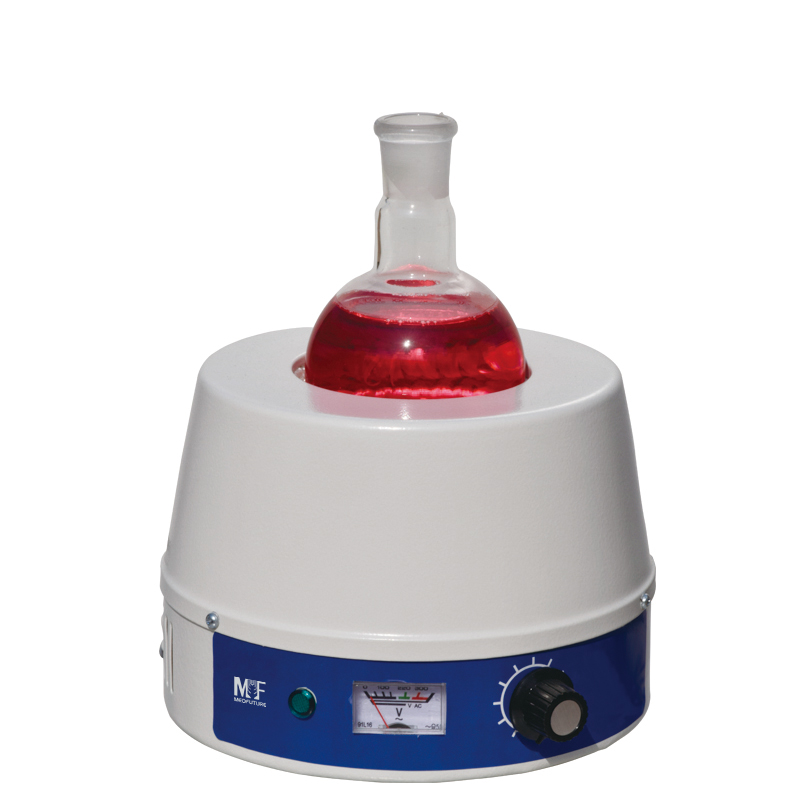

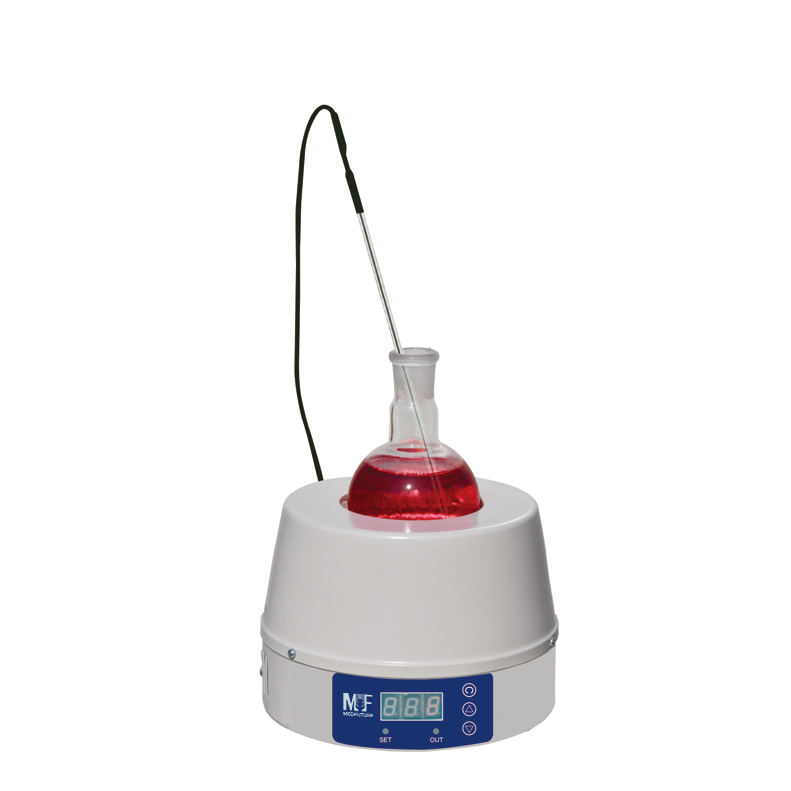

Electronic and Digital Heating Mantle
Inquire Now
None
Features:
* Corrosion-resisting and ageing-resistant.
* The internal heater is in hemisphere shape with high efficiency.
* The external material is cold-rolled steel with anti-bacteria powder coating.
* It adopts high-temperature resistant-free glass fiber with good isolation performance.
It applies to colleges, petrochemical industries, medicine, and environment protection institutions for liquid heating.
Technical Parameters:
| Model | MHM- IE (Electronic Display)/MHM-ID (LED display) | |||||||||
| Capacity(ml) | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 | 50000 |
| Max. Temp. | 380℃ | |||||||||
| Working Time | Continuous | |||||||||
| Consumption (W) | 100 | 150 | 250 | 300 | 500 | 600 | 1000 | 1500 | 2500 | 6000 |
| Power Supply | AC220/110V±10%, 50/60Hz | |||||||||
| Internal Size (mm) | Φ70*40 | Φ95*50 | Φ150*50 | Φ150*70 | Φ180*80 | Φ200*100 | Φ245*150 | Φ310*175 | Φ380*190 | Φ480*270 |
| External Size (W*D*H) mm | 200*215*150 | 240*260*170 | 285*300*200 | 355*300*240 | 415*370*270 | 480*430*300 | 540*530*280 | 665*450*550 | ||
| Packing Size(W*D*H) mm | 260*265*237 | 250*70*190 | 300*310*210 | 300*310*245 | 370*380*285 | 500*440*320 | 560*560*290 | 775*775*560 | ||
| Net Weight (kg) | 1.7 | 1.8 | 1.8 | 2.7 | 4 | 4.5 | 7 | 10 | 13 | 53 |
| Gross Weight (kg) | 3.5 | 2 | 2 | 4 | 5.5 | 6 | 9 | 13 | 15 | 68 |
