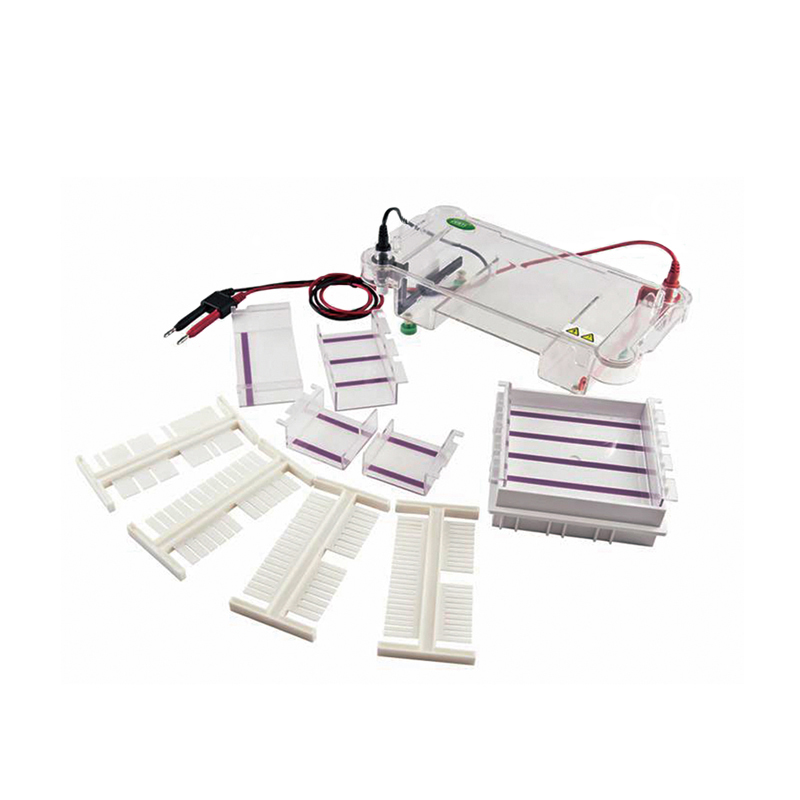

MF-ETH2 Horizontal Electrophoresis Tank
The MF-ETH2 is ideal for restriction fragment analysis, sample prep or checking of high numbers of samples.
Features:
1. Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
2. Dismountable electrodes make maintenance easily.
3. Sample background color design, adding the sample conveniently.
4. The PC transparent top lid prevents liquid volatilization and electricity leakage.
5. Auto-switch-off when the lid is removed
6. Recommended power supply: MF-PS2/MFPS-3
Technical Parameters
| Model | MF-ETH2 |
| Gel Trays(D*W) mm | 60×60; 120×60; 60×120 120×120 |
| Comb Thickness | 1&1.5mm |
| Comb Throughput | 1,2,3, 6, 8, 11, 13, 18 ,25 |
| NO. of Samples | 1~100 |
| Buffer Volume | 550ml |
| Standard Accessories | Body tank with electrode*1 Gel tray 120*120mm*1Gel tray 120x60mm*1 Gel tray 60x120mm*1Gel tray 60x60mm*2 Gel box*11.5mm thickness1/2/3 wells comb*11.0mm thickness6/13 wells comb*21.0mm thickness8/18 wells comb*21.0mm thickness11/25 wells comb *2Leveling feet*4 Electrical Cables*1 User Manual*1 |
| External Size(W*D*H) mm | 300*160*75 |
| Package Size(W*D*H) mm | 460*250*200 |
| Gross Weight | 2 Kg |
