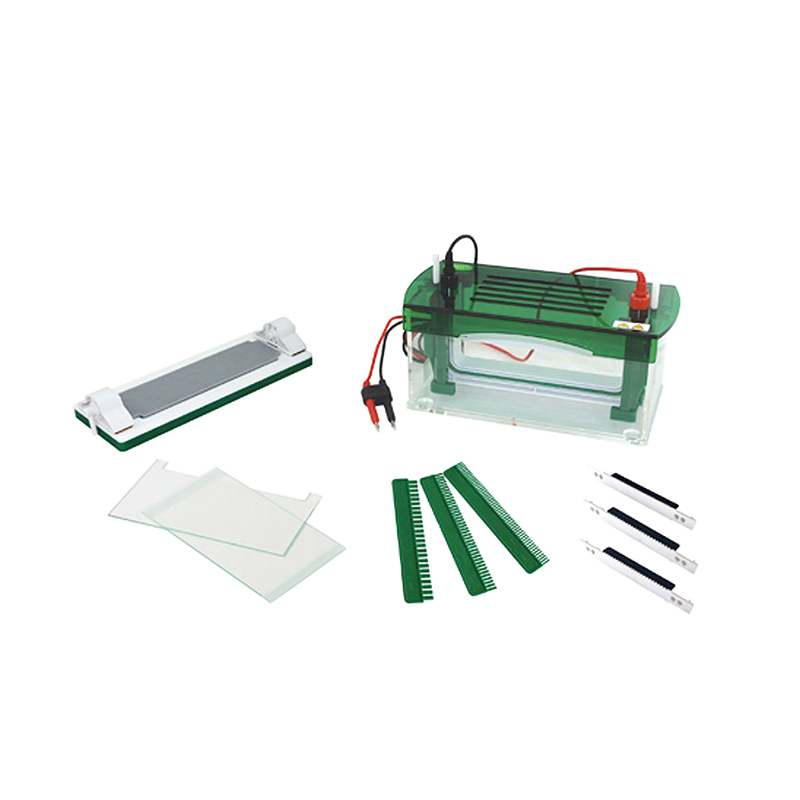

MF-ETV2 Vertical Electrophoresis Tank
Features:
1. Easy installation
2. With the gel making device of normal position, don’t should to moving the glass plate from the process of making gel to electrophoresis, convenient for oberservation the gel preparation from the glass on both sides, ensures fast set up times and leak-free operation
3. Precast gel core, do not affecting the operation of gel making while the electrophoresis
4. Safety button for lid opening
5. Abundant buffer not only guarantees cooling effects, but also keeps the PH value stable during the whole experiment process
6. Auto-switch off when the lid is removed
7. Recommended power supply: MF-PS3
Technical Parameters:
| Model | MF-ETV2 |
| Glass Trays(D*W) mm | 216*220 |
| Gel Trays(D*W) mm | 186*205 |
| Comb Thickness | 1.0mm |
| Comb Throughput | 25,40,52 |
| Amount of Gel | 1~2 pieces |
| NO. of Samples | 25~52 |
| Buffer Capacity | 3500ml |
| Standard Accessories | Body tank with electrode*1 Gel casting base *1Notched glass plates*41.0mm bonded glass spacer*41.0mm thickness25 wells comb*21.0mm thickness 40 wells comb*21.0mm thickness 52wells comb*225 well Guide sample device*240 well Guide sample device*252 well Guide sample device*2Cooling circulation device(Optional)*1 Electrical Cables*1 User Manual*1 |
| External Size (W*D*H) mm | 280*140*250 |
| Package Size(W*D*H) mm | 460*400*450 |
| Gross Weight | 9 Kg |
