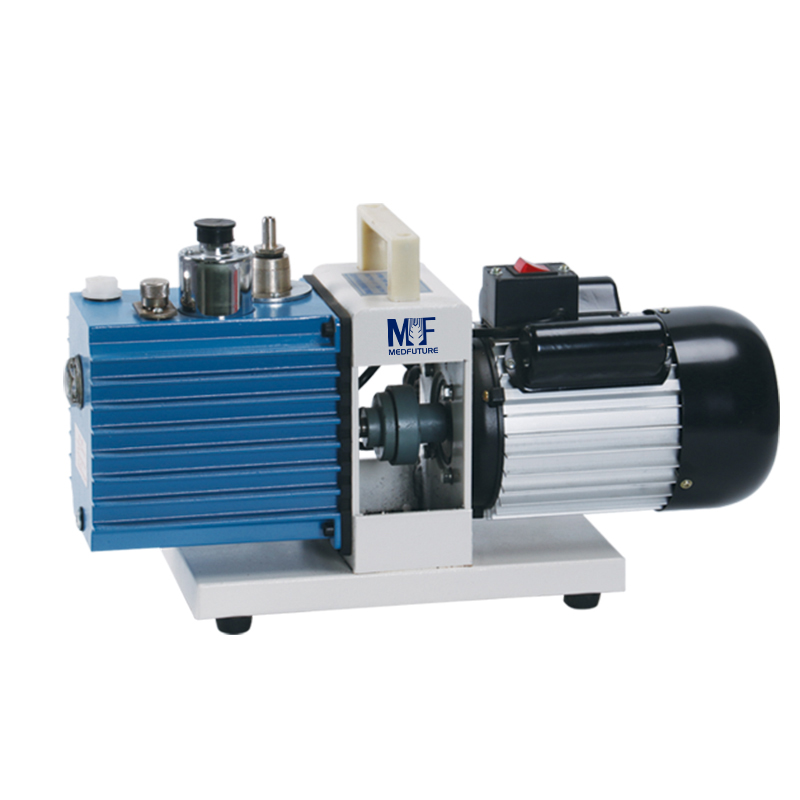

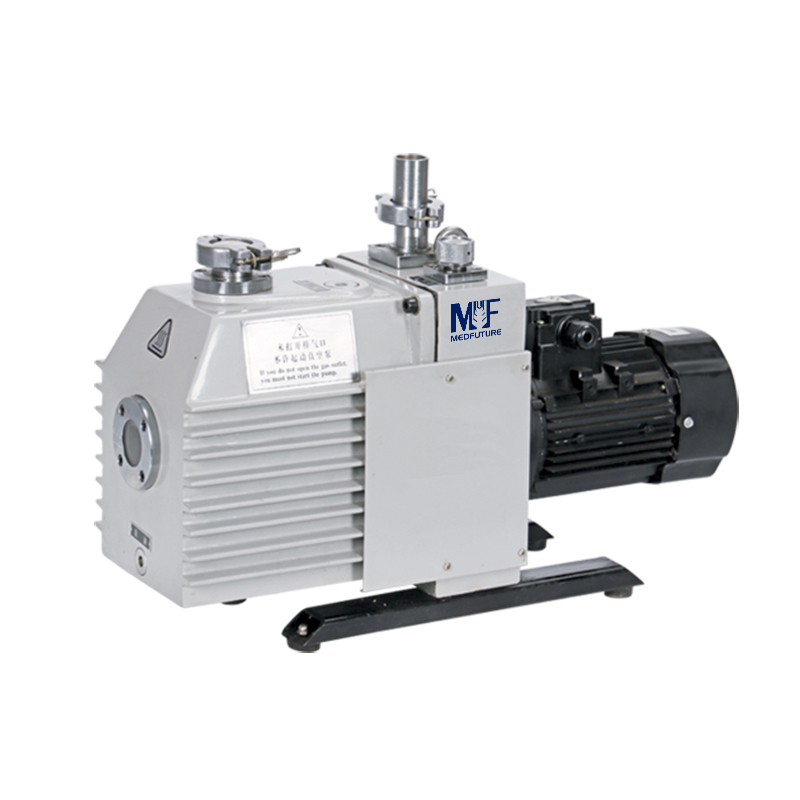

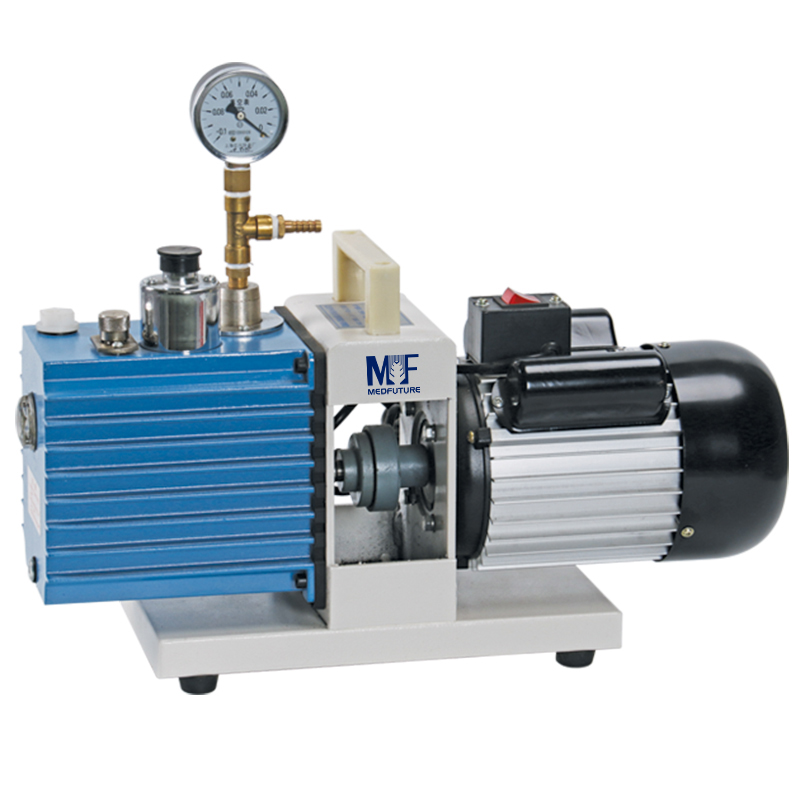

Rotary Vacuum Pump
Features:
1.Rotary-vane vacuum pump with dipole unit construction structure.
2.Exhaust air and vacuum the equipment serialize the process of refrigeration, drying and sealing of container to make it complete.
3. Small volume, light weight, low noise and easy to operate. (This series of product could not be used as compressor pump or delivery pump)
Technical Parameters:
| Model | MVP-R0.5 | MVP-R1 | MVP-R2 | MVP-R4 | MVP-R6 | MVP-R8 | MVP-R15 | MVP-R25 |
| Speed of Exhaust (L/S) | 0.5 | 1 | 2 | 4 | 6 | 8 | 15 | 25 |
| Speed | 1400 rpm | |||||||
| Ultimate Vacuum | 0.06 Pa | |||||||
| Consumption (W) | 180 | 250 | 370 | 550 | 750 | 1110 | 1500 | 3000 |
| Power Supply | AC220V/110V±10%，50/60Hz | AC380V, 50Hz | ||||||
| External Size (W*D*H) (mm) | 462*131*250 | 484*131*250 | 481*146*265 | 525*146*265 | 580*195*380 | 640*245*430 | 760*350*520 | 960*550*630 |
| Package Size (W*D*H) (mm) | 530*205*320 | 570*210*320 | 590*210*340 | 610*210*345 | 640*270*410 | 700*310*475 | 820*410*580 | 1020*600*780 |
| G.W(Kg) | 8 | 21 | 25 | 27 | 43 | 68 | 100 | 120 |
