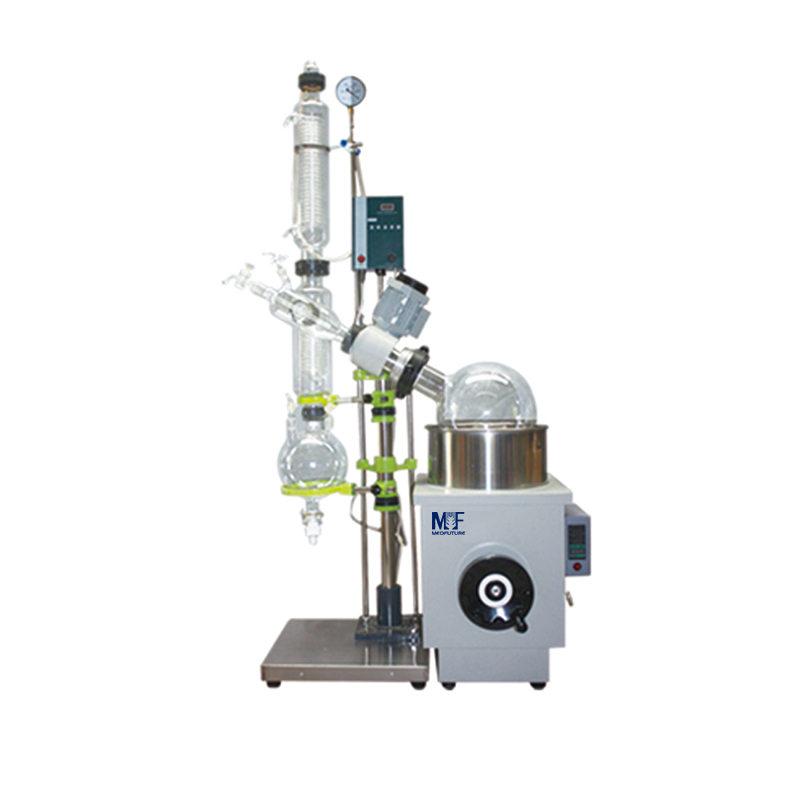

Rotary Evaporator
Features:
1. Electronic stepless speed control.
2. LED display.
3. Optional explosion-proof function.( MRE-301, MRE-501, MRE -1002, MRE -3002, MRE -5003)
Technical parameters:
Model | MRE-201D | MRE-301 | MRE-501 | MRE-1002 | MRE-2002 | MRE-5003 | ||||||
Rotary Bottle | 1L 24# (standard mouth) | 3L (flange Ø50) | 5L (flange Ø50) | 10L (flange Ø95) | 20L (flange Ø95) | 50L (flange Ø125) | ||||||
Collecting Bottle | 1L 24# (standard mouth) | 2 L 35# (ball mill mouth) | 3L 35# (ball mill mouth) | 5L ( flange Ø50) | 10L (flange Ø60) | 20L (flange Ø60) | ||||||
Condenser | Verticalφ85*460mm,29#(standard size) | Verticalφ100*510mm, | Verticalφ100*590mm, | Vertical three backflow ,φ120*640mm(main),φ135*470mm(SUB) | Vertical three backflow ,φ130*680mm(main),φ160*530mm(SUB) | Vertical three backflow ,φ160*840mm(main),φ160*530mm(SUB) | ||||||
Charging Valve | 19#(standard size) | 34#(standard size) | 40#(standard size) | |||||||||
Rotary Speed | 0-120rpm | 0-110 rpm | ||||||||||
Vacuum | -0.098 Mpa | |||||||||||
Temp. Range | RT~400℃ | |||||||||||
Temp. Accuracy | ±1℃ | |||||||||||
Stroke Height | 120mm | 180mm | ||||||||||
Rotary Power | 30W | 40W | 40W | 120W | 180W | |||||||
Heating Power | 1.5KW | 2KW | 3KW | 5KW | 8KW | |||||||
Shelf Material | Stainless steel | Coating anticorrosive | ||||||||||
Chamber Material | SS 250*140mm | SS255*170mm | SS280*170mm | SS550*320mm | SS450*250mm | SS350*220mm | ||||||
Plate size | 280*330 mm | 350*330 mm | 534*504 mm | 474*474 mm | 550*320 mm | |||||||
Power Supply | AC220/110V±10%,50/60Hz | AC220V±10%,50Hz | AC380V/220V±10%,50Hz | |||||||||
Standard Accessory | 1L Rotary bottle*1, 1L Collecting bottle*1, | 3L Rotary bottle*1, 2L Collecting bottle*1, | 5L Rotary bottle*1, 3L Collecting bottle*1, | 10Lrotary bottle*1, 5Lcollecting bottle *1 | 20Lrotary bottle*1, 10Lcollecting bottle *1 | 50Lrotary bottle*1, 20Lcollecting bottle *1 | ||||||
Optional Accessory | Transparent bath cover, Explosion-proof transducer | Explosion-proof transducer, Explosion-proof motor EX180W, | Explosion-proof transducer, Double collection bottle, Auto-lifting, Explosion-proof motor EX120W | |||||||||
Vacuum pump, Recirculating chiller | ||||||||||||
External Size(W*D*H)mm | 700*440*885 | 660*330*970 | 700*335*1009 | 970*480*1950 | 1170*540*2200 | 1520*620*2470 | ||||||
Package Size(W*D*H)mm | 590*460*460 | 1000*460*450
| 1040*620*410
| 1350*350*400 1280*570*660
| 1370*700*680 700*680*740
| 1450*390*440 1150*840*660 790*730*790
| ||||||
Gross Weight | 21 Kg | 38 Kg | 38 Kg | 100 Kg | 123 Kg | 170 Kg | ||||||
