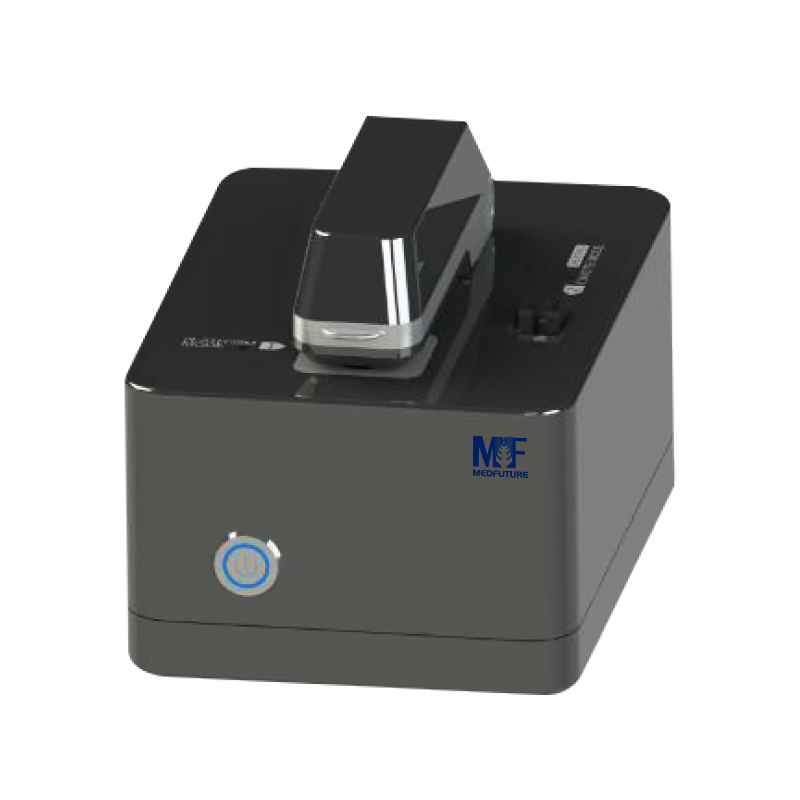

Micro-Volume UV/VIS Spectrophotometer

Application:

Micro-Volume Spectrophotometer is used for quantitative and qualitative research by spectrophotometry. It is usually used in quantitative research of nucleic acid, proteins and bacterial concentration.

Inquire Now Next Product

Product details

Features:

* Microscale sample test, minimum 0.5ul.

* Ultramicro and cuvette dual platform (Only for MF-MUV2000).

* Wide test area, 100 times of the traditional spectrophotometer.

* Most samples don’t need dilute.

* Test directly without warming up, do not need detection container, lower daily consumption.

* PC control, more accurate and flexible.

Technical Parameters:

Model	MF-MUV1000	MF-MUV2000
Minimum Sample Capacity	0.5ul
Ultromicro Optical Distance	1mm/0.2mm	1mm/0.2mm/0.05mm
Cuvette Optical Distance	/	10mm/5mm/2mm/1mm
Whole Wavelength	190~1100nm
Scanning Wavelength	190~850nm
Wavelength Accuracy	1nm
Wavelength Resolution	≤0.3nm（FWHM @ Hg 253.7nm）
Absorbance Accuracy	2%（0.76 @ 257nm）
Absorbance Resolution	0.002Abs（1mm）
Absorbance Area	0.02～80 (10mm)	0.005～80 (10mm)
Test Accuracy	0.1～5 Abs.±0.1 Abs, 5～80 Abs. ±2%	0.01～0.5 Abs. ±0.01Abs 0.5～80 Abs. ±2%
Test Time	5s
Detector	3648 pixel linear CCD array
Light Source	Import xenon lamp
Sample Test Platform Material	304 stainless steel and quartz
Standard Accessories	Driver software CD 1 pc, Power line 1 pc, Power Adapter 1 pc
Power Supply	AC 110/220V±10% , 50/60Hz
Consumption	24W
External Size（WDH）mm	200130136
Packing Size（WDH）mm	310310310
N.W/G.W(kg)	2.5/5
