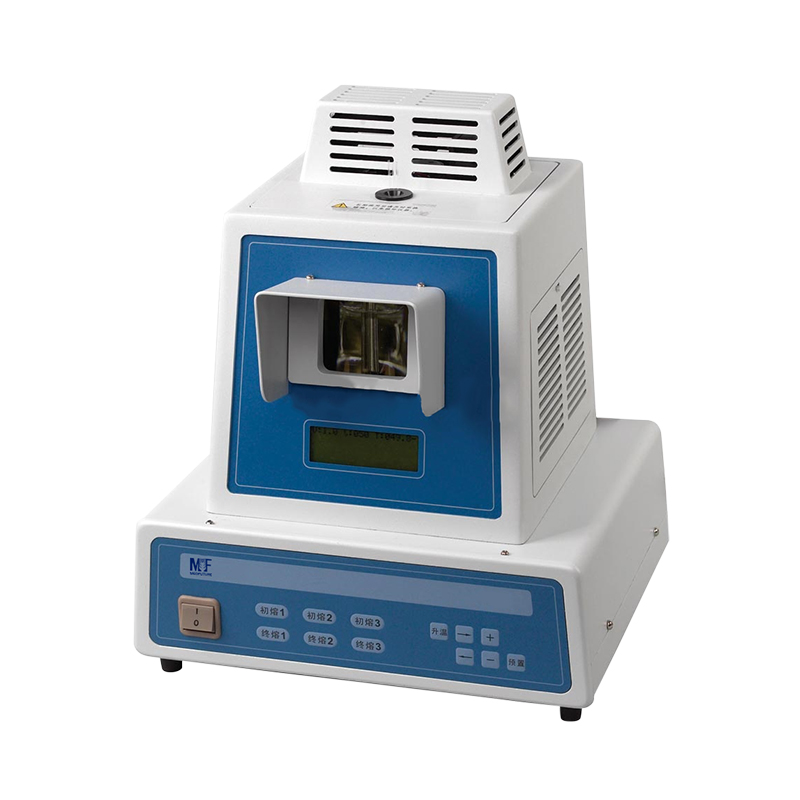

Visual Melting Point Apparatus
Application:
It is used to measure the melting point of medicine, dye-stuff and perfume and other organic crystal substances to determine their purity. Measurement method is in conformity with the standard of pharmacopoeia.
Feature:
It can measure three samples at the same time and calculate average value of initial and final melting points automatically.
Technical Parameters:
| Model | MFMP-R |
| Measuring Range | 40~280℃ |
| Display | LCD |
| Resolution | 0.1℃ |
| Temperature Accuracy | 0.4°C (≤200℃) 0.7°C (> 200℃) |
| Repeatability | (Linear heating-up rate=1.0°C /min)0.3℃ |
| Linear Heating-up Rate | 0.5, 1.0, 1.5, 3.0° C/min |
| Deviation of Linear Heating Rate | 10% (setting value) |
| Interface | RS232 |
| Power Supply | AC 220V/110V±10%, 50/60Hz |
| External Size (W*D*H) mm | 400*400*540 |
| Package Size (W*D*H) mm | 560*530*730 |
| Gross Weight (kg) | 15 |
